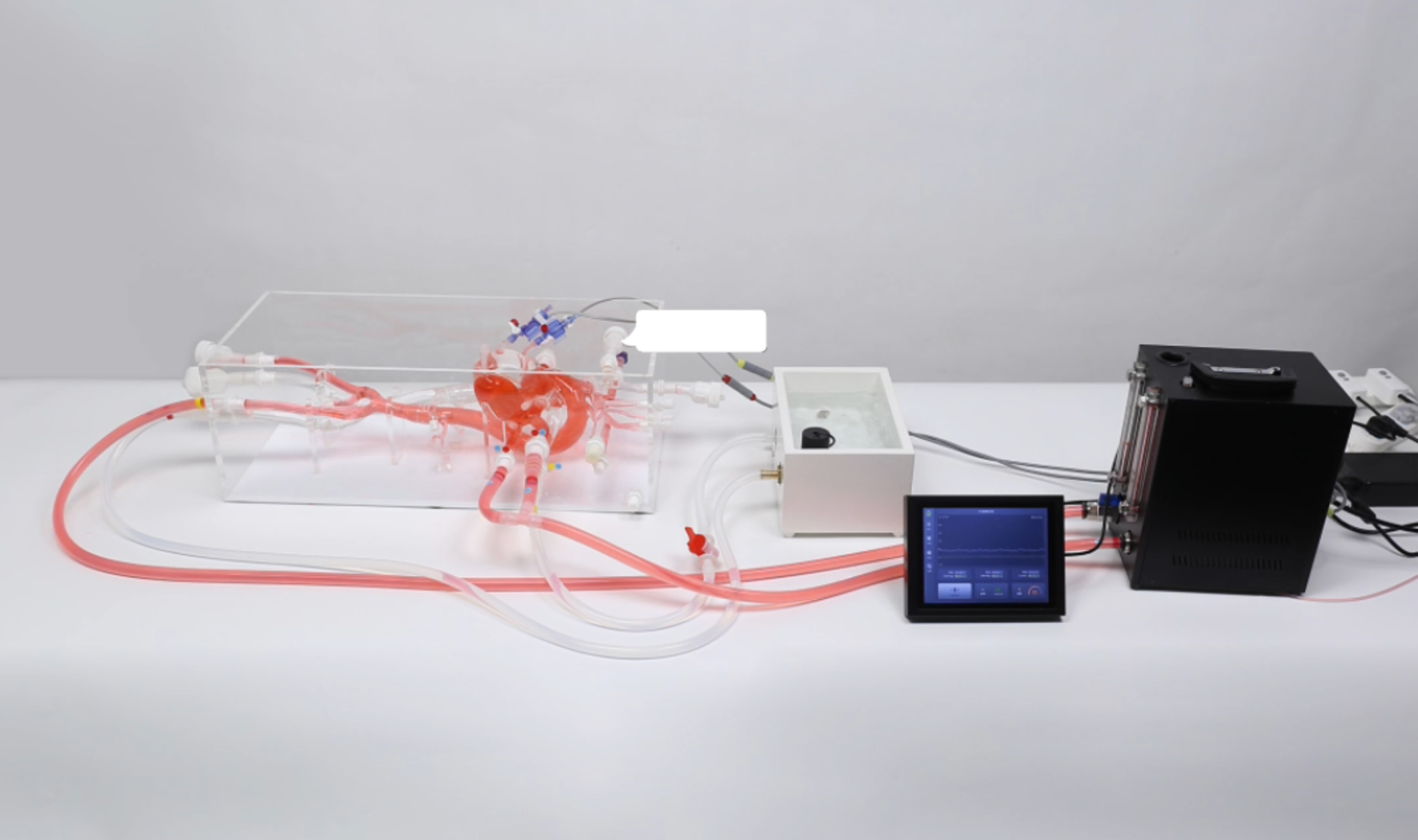

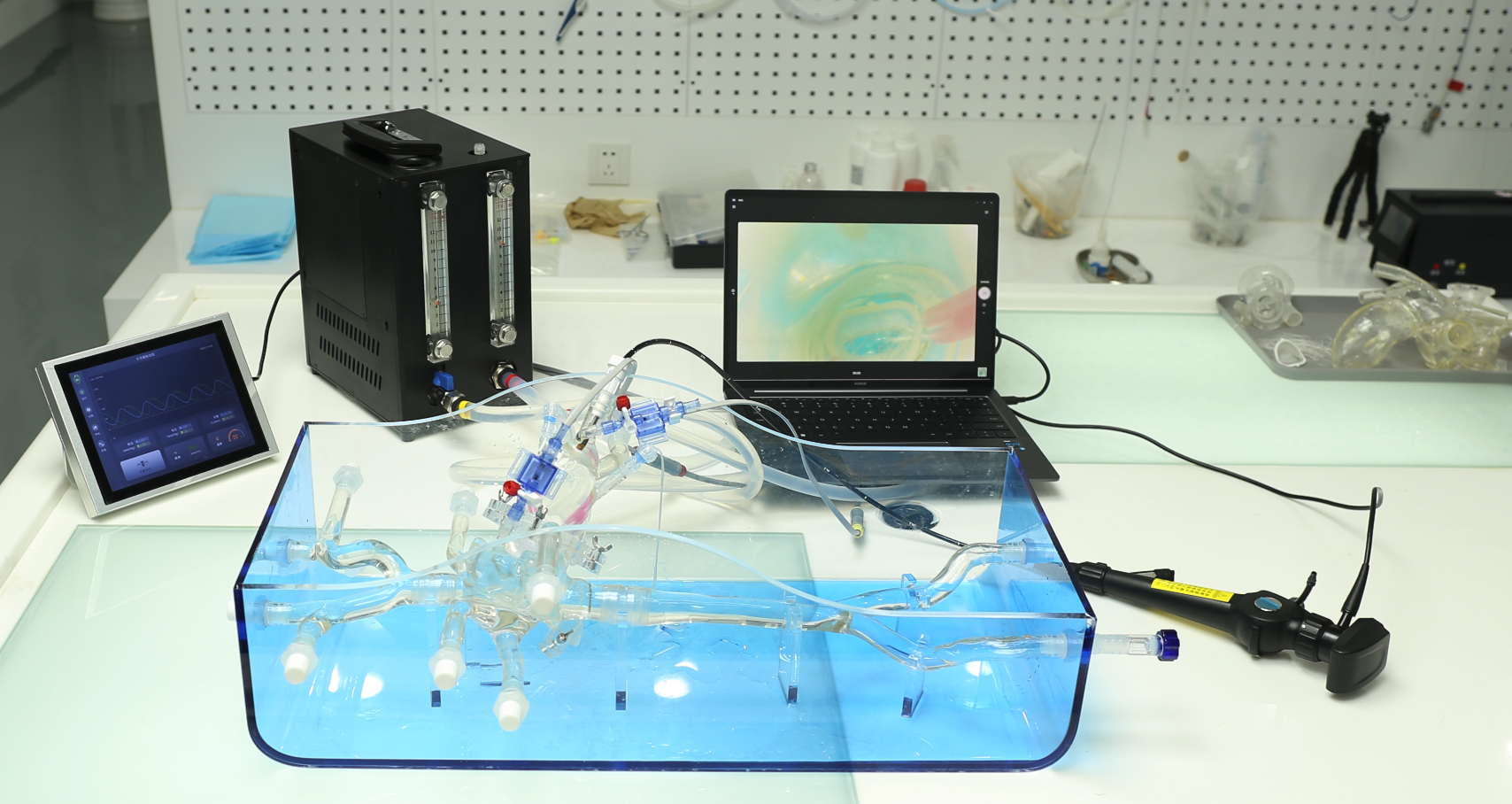

This product is mainly composed of pulse pump system, control system and output display system. It is used to provide blood flow power source for human blood flow simulation device, and can accurately adjust the required simulation parameters.
Composition: Analog pump, touch screen display, pressure sensor interface.
Product parameters
• Fluid media: water, preclinic lubricating fluid, blood-like
• Pulsation frequency: 5-160beat/min
• Maximum output per heartbeat: 80ml
• Cardiac output: 5.5L/min@70Beat/min
• Maximum output pressure: 250mm Hg
• Temperature control accuracy: 0-100℃±0.2℃
• Power: 90-240VAC/50-60Hz, 400W
• Pro. Dimensions: 210*150*280mm
• Weight: 6.6kg
• Reference standard: ISO 5840-3
Other characteristics: Hemodynamic simulation provides simulated fluid for the cardiovascular model and can adjust the temperature, flow rate, and pressure of the simulated fluid. The parameter adjustment accuracy is high, and the touch screen outputs a parameter curve.

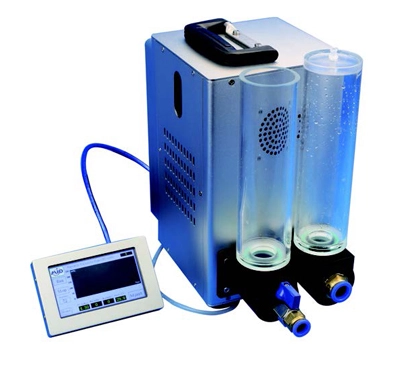

| High-precision pulsatile pump | MODEL: PLAB1001 |
| Product Size | Model length: 21 cm (8.3 in) |
| Model width: 15cm (5.9 in) | |
| Model height: 28 cm (11.0 in) | |
| Lead Time | 15 days |
| Port | Shanghai, China |
Preclinic Medtech is a high-tech company dedicated to the development and promotion of high-simulation medical models.
